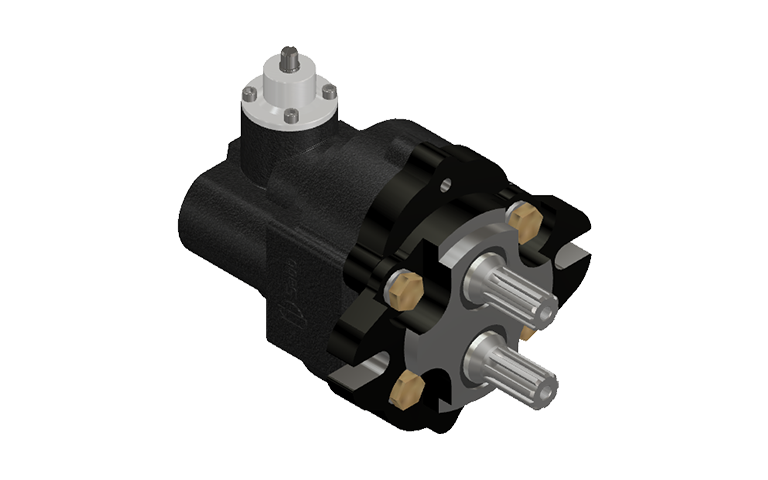

Pump 170 Pneumatic Reg. Desc. Gray Series.
Code: PTBG-0021
Categories: Application, Dump equipment, Gears, Hydraulic Pumps, Semitrailers and rafts
Oil-hydraulic pump prepared for trays and tippers in general. It can be incorporated into any type of PTO or to be used by cardan.
Components:
Two-way, bi-directional, G3000 gray cast iron body with pneumatically actuated BY PASS check valve, adjustable lowering, with heat treated SAE8620 material gears with a hardness of 56-58RC.
Mounted on excellent quality needle bearings with good running tolerance, recommended for high speed applications and high loads.
Characteristics:
170 LT / MIN flow rate. at 2000RPM.
With a working pressure of 170 KGS / CM2.
