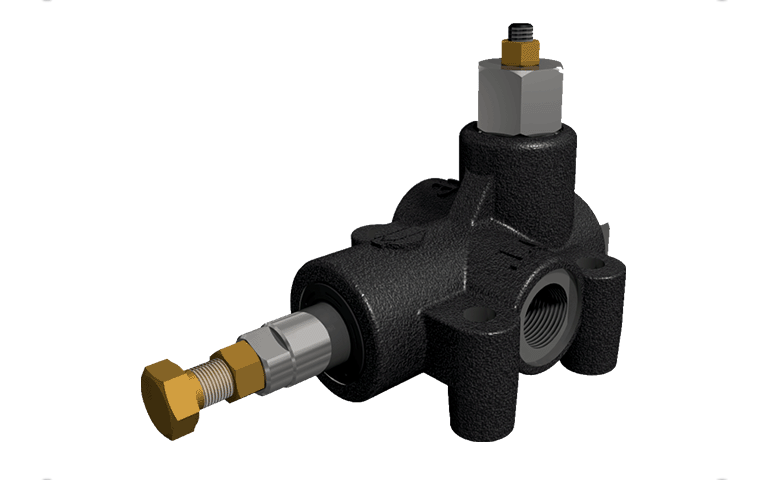

Limit Switch Valve 120l
Code: PTA-0016
Categories: Accesories, Valves
A relief valve is found in any hydraulic system.
This valve is normally connected between the pressure line (pump outlet) and the tank.
They are designed to relieve pressure when a fluid exceeds a preset limit (set pressure). Its mission is to prevent the explosion of the protected system or the failure of equipment or pipe due to excess pressure.
- Material: G3000 grey cast iron
- Maximum flow: 120 liters
- Relief Register Capacity: 120 – 220 BAR.
- Weight: 3.5 Kg
- Intake and outlet: ¾” – 14 BSPT
